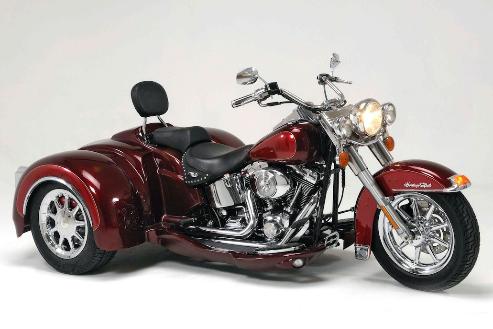

CSC VOLUSIA Trike
It’s a fact. Harley Davidson owners demand the ultimate in style and
performance and accept nothing less in the equipment they ride.
CSC Trike recognized that when we designed the Volusia trike
conversion kit. The suspension is the result of superb performance
engineering and innovation. A race-inspired, opposing rocker, mono-
shock independent suspension design with Vertical Stablizer™
technology delivers ultimate handling and cornering ability. Trust
us, with our Volusia trike conversion, your two-wheeled companions
will be struggling to keep up with you on the twisties!
  The drivetrain is a marvel of engineering excellence. Purpose built
sprockets and a twin belt drive retain the stock gear ratio. The belts
are a proprietary material and design, manufactured by Gates, the
industry leader in belt technology and production. Twin-piston disc
brake calipers are standard equipment, providing excellent stopping
power under all conditions. Check out the optional Performance
Brake Upgrade, a drilled rotor with nickel plating and a super-slick
billet aluminum caliper.
  A meticulously styled body with our custom-designed LED
tombstone taillights will turn heads wherever you may roam. And
with our internally mounted Space Saver™ hinge design and over 6
cubic feet of trunk storage capacity, there's not much you'll ever
have to leave behind.
Ken's Custom Trikes     2245 N.E. Jefferson Ave., Peoria, IL 61603     (309)682-2453     info@trickyourtrike.com
// Price List
// Brochure //
SUSPENSION
Hands down, the most innovative suspension engineering design on the market! Based on Indy car technology, the VOLUSIA features a
vertically stabilized opposing rocker mono shock independent suspension, plus:
  • Purpose designed QA1 shock for the Opposing Rocker arm system
  • QA1 250Lb. linear wound racing spring designed to accommodate a loaded weight of up to 650lbs. inclusive of accessories, luggage,
    and passengers. (Lighter spring weights available)
  • Optional preload adjuster for simple spring preload adjustment to compensate for varying loads
DRIVETRAIN
  • Twin reduction jackshaft belt drive
  • Sprockets – 8620 gas carburized sprockets with new transmission sprocket.
  • Belts – Twin reduction jackshaft with 90mm Gates pergormance belt kit
DISC BRAKE SYSTEM
Outstanding braking performance is supplied by the standard Varga calipers, 11.5” purpose designed rotors, and braided stainless steel
brake lines throughout. To add even more style and performance, check out the
PERFORMANCE BRAKE UPGRADE!
WHEELS AND TIRES
  • 15 x 6.5, 5 x 100mm bolt pattern, Split 5-spoke w/ silver powder coat finish
  • 205/60R15 All Season radial tire
  • Chrome Wheel Upgrade available

Superior Styling & Finish
In typical California Sidecar Trike fashion, we’ve crafted a body with an aggressive, sleek style that perfectly complements the style of
the Harley Davidson. The body is equipped with custom tombstone LED taillights that incorporate the brake, running and turn signal
lights into one cool chrome unit. Also standard are the rear chrome trim accent strips and 4 LED auxiliary running lights to increase
visibility. Each painted body comes with the finest finish in the business. Our in-house fiberglass and paint departments insure the
highest degree of quality control and the color match capability is unsurpassed. Bodies are wet sanded and then polished in a two-step
process to achieve the amazing paint finish that we demand.
BOLT-ON INSTALLATION
All California Sidecar Trike conversions are completely bolt-on kits. No welding required.
WARRANTY
3 year/50,000 mile limited warranty includes parts and labor on material and workmanship defects. Inquire with an Authorized Dealer or
California Sidecar for specific terms of the warranty.
SPECIFICATIONS
Rated Load Capacity                                         400 lbs*
Wheel                                                                15 X 6.5 in, 5 on 100 mm bolt pattern, 4.75 in backspacing
Wheel Base                                                        72.5 in (184.2 cm)
Wheel Base with Power Trak                            76.4 in (194.0 cm)
Overall Length                                                  107.4 in (272.8 cm)
Overall Length with Power Trak & Lightbar    111.3 in (282.7 cm)
Track                                                                 47.875 in (121.6 cm)
Trike Width with Lightbar                                61 in (154.94 cm)
Ground Clearance                                              4 in (10.2 cm)
Trunk Storage Capacity                                     6.5 cu. Ft.
Trailer Hitch Ball Height (1-7/8" ball)               13 in (33 cm)

(*250 lb coil spring weight; higher spring weights available)
