Ken's Custom Trikes     2245 N.E. Jefferson Ave., Peoria, IL 61603     (309)682-2453
Simply the Best Harley Davidson™ Trike
Conversion Kit Available

Hit the road with the all new Roadsmith HDSS conversion kit by The
Trike Shop and experience the trike-riding difference. With a longer
wheelbase, generous additional storage, independent suspension, disc
brakes, optional electric reverse and Roadsmith steering kit, you may
never want to return home!

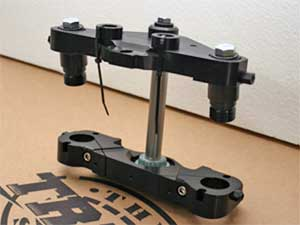

Roadsmith 5 Degree

Raked Triple Trees
A highly recommended option is
our Roadsmith raked triple trees.
This 6 degree rake pushes the
front axle forward about two and
a half inches. When we speak of
rake kits, keep in mind what
really counts is the trail. We end
up with about 2 1/2" of trail and
that is just what you want for
easy to turn steering yet stable at
higher speeds. How does this
work you ask? The easiest way to
illustrate this is that it's like
having wider handlebars, in the
sense that you have more
mechanical advantage at the grips
to turn the bars.
Electric Reverse
A unique and cool option we have
developed is our Electric Reverse
System. This electric motor is not
just some starter motor but rather
an extremely high torque 12V
motor that goes through a gear
reduction to produce huge
torque. To operate the reverse,
simply lift the lever on the left
side to engage the electric
motors gear directly
into the front of the belts
sprocket. Once you've engaged
the motor, simply push and hold
the bikes horn button down to
back you up. When finished, put
the engagement lever back down
and the horn button will be used
as a horn again. There is a safety
built in so if you put the bike in
gear while the lever is up, the
horn sounds! You'll probably only
do that once.
Wheel Package
You can have matching front and
rear wheels by ordering our
custom wheel package.  This
billet front wheel comes in a
highly polished finish and
matching polished brake rotors.
The front rim is machined to
match our chrome 16" wheels
pictured below.
Chrome Rear Rims
You can brighten up your wheels
with this 16" x 7" chrome rim
option.  They are a 4x 100mm
bolt pattern with a positive
35mm offset. Also available in 17".
White Wall Tires
If your front tire has a white wall,
you should have matching tires in
the rear, right? We offer them
with the big fat white walls, thin
white walls, or the new super
thin white walls on the 2009
models. The tires are specially
made to our specification. The
215/55-16 tires are Formoza FD1's.
Chrome Bumper
Add protection and beauty to
your rear end with our Nerf
Bumper. This 1 1/2" chrome
plated tube with capped ends is
solidly mounted to the trike
frame. If you do "bump" into it,
it's OK.
These ingenious items will
magically make the rider behind
you happier in a rain storm.
Lighted Mudflaps
These mudflaps will no t only
prevent that big rooster tail from
soaking your buddies behind you,
they have 6" Roadsmith LED lights
in them that function as running
and brake lights.
Wheel Well Trim Package
This is a 3/8" stick-on trim that
goes around your wheel opening.
It finishes off the look nicely.
Roadsmith Trike Cover
Protect your trike on it's off days
with this cover made of
waterproof, rip-stop nylon.
Draw bar
Your kit already comes with the
receiver hitch, this is the
drawbar you'll need to actually
Trailer Converter
This harness actually plugs right
into the factory harness to give
you a flat four connector for your
"Paint-Ready" Main Body
This is the prepped and primed body.  It is ready to be sanded and painted.
Solid Color Paint
We can paint and match to your
bike's exact color.
Two-Tone Paint
This can also be matched to your
bikes exact colors.
Pinstripes can be matched to your
bike's layout on single color paint
The Vintage Look

This American Icon has the Classic
look and Style of no other. The roar
and feel of a Harley™ Touring
through the hills is hard to describe.
Best just discovered
•Independent rear suspension
•True track stabilizer bar
•Longer wheelbase
•Belt driven differential
•Gates Polychain HD belt
•Disc brakes
•Alloy wheels
•Storage Compartment
•Factory styled body
•Trailer hitch
•Steering kit
•3 year 1,000,000 mile warranty
on the entire trike kit
